Install

What you need

Minecraft 1.20.1 Forge 47.x Windows or Linux

Any launcher works. The installer already knows where the vanilla launcher, Prism, MultiMC, Modrinth and CurseForge keep their instances.

macOS: install.sh will install the mod, but this release only ships engine binaries for Windows and Linux. The mod still loads and plays, analysis is just off.

What is in the release

Block Reality is two programs. The mod reads your blocks and draws the HUD. A separate process does the finite element solve.

File	What it is	Goes to
`blockreality-0.1a.jar`	the Forge mod	`<instance>/mods/`
`br-sidecar.exe`	the analysis engine, Windows	`<instance>/`
`br-sidecar`	the analysis engine, Linux	`<instance>/`
`install.bat` / `install.sh`	the installer	run in place
`SHA256SUMS.txt`	hashes of every file in the archive	—

FrameCore is statically linked into br-sidecar, so there is no separate library to install. Running it as its own process instead of loading it into the JVM means a crash in the C++ costs one analysis instead of the server and the save.

The engine is optional. Without it the mod loads and plays normally, with analysis disabled and reported as such.

Make a Forge 1.20.1 instance

Skip this if you already have one. Otherwise create a new profile: Minecraft 1.20.1, modloader Forge, any 47.x version.

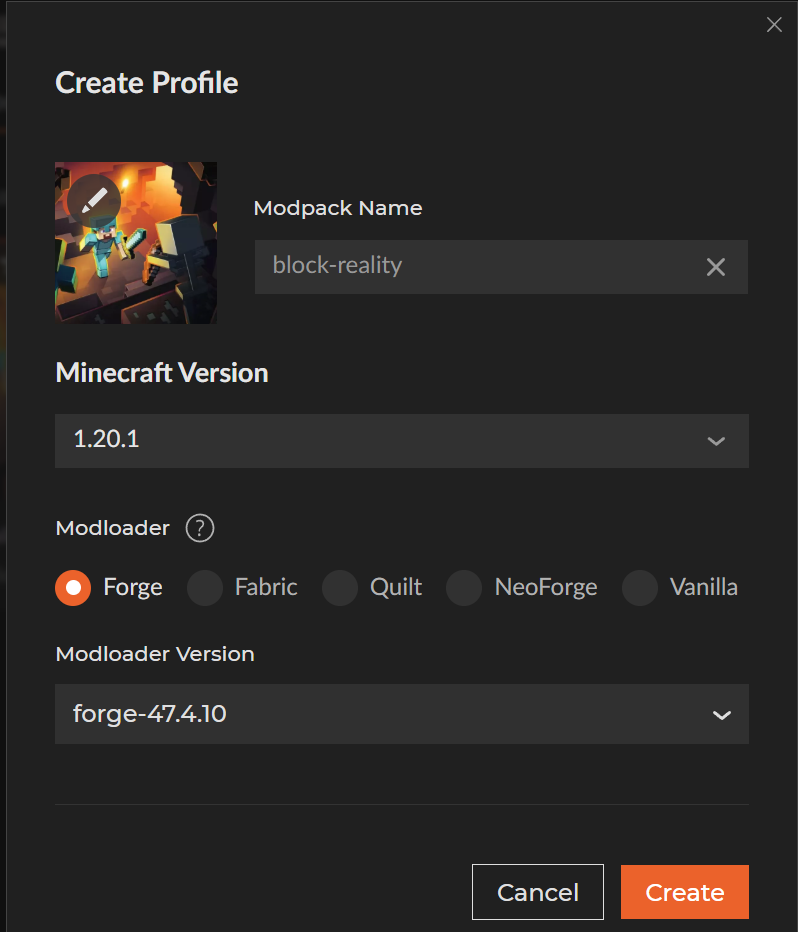

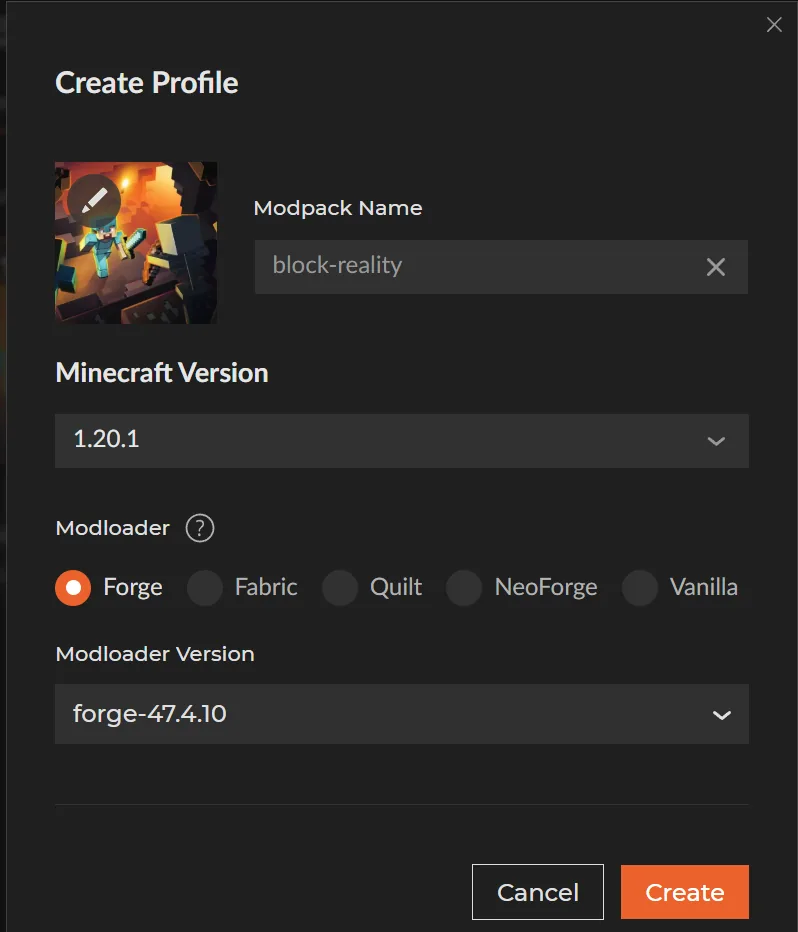

A CurseForge profile on 1.20.1 with forge-47.4.10. Any launcher will do, the version numbers are what matter.

Download and extract

Download the archive and extract it. Extract it properly rather than running the installer from inside a zip preview, because it copies the files sitting next to it.

Download from GitHub Releases

Mirrored here as individual files: blockreality-0.1a.jar, br-sidecar.exe, br-sidecar, install.bat, install.sh, SHA256SUMS.txt.

Run the installer

On Windows, double-click install.bat. On Linux:

./install.sh

With no arguments it looks for a Minecraft instance in the usual locations. If it finds one it uses it; if it finds several it lists them and asks which. You can also name the directory yourself:

install.bat "D:\games\my-instance\.minecraft"

./install.sh ~/.minecraft

To see what it found without installing anything:

install.bat --list

The directory it wants is the game directory, the one with mods/ and saves/ in it. Not the launcher folder.

Check the two files landed

This is also all a manual install is. If you would rather not run a script, copy these two files yourself.

The mod goes in mods/:

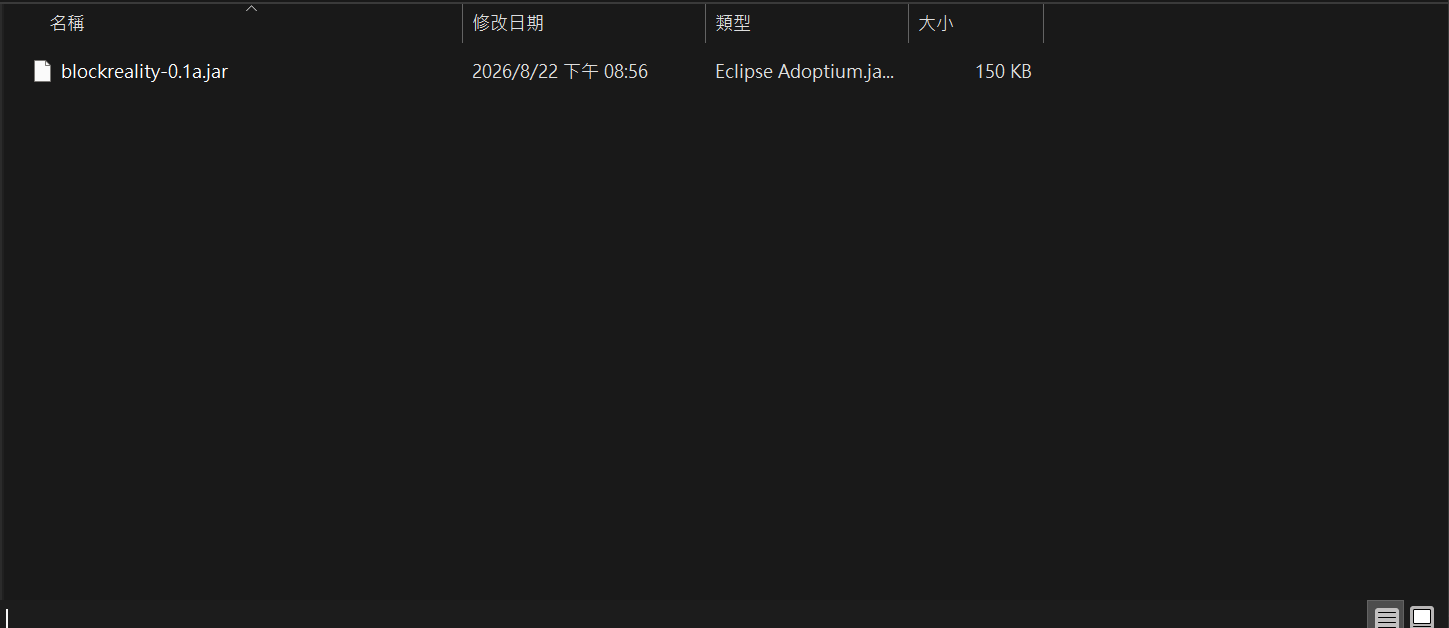

File Explorer showing blockreality-0.1a.jar inside the mods folder — `blockreality-0.1a.jar` in `<instance>/mods/`. It is only about 150 KB because the solver is not in it.

The engine goes one level up, in the instance root beside mods/ and saves/:

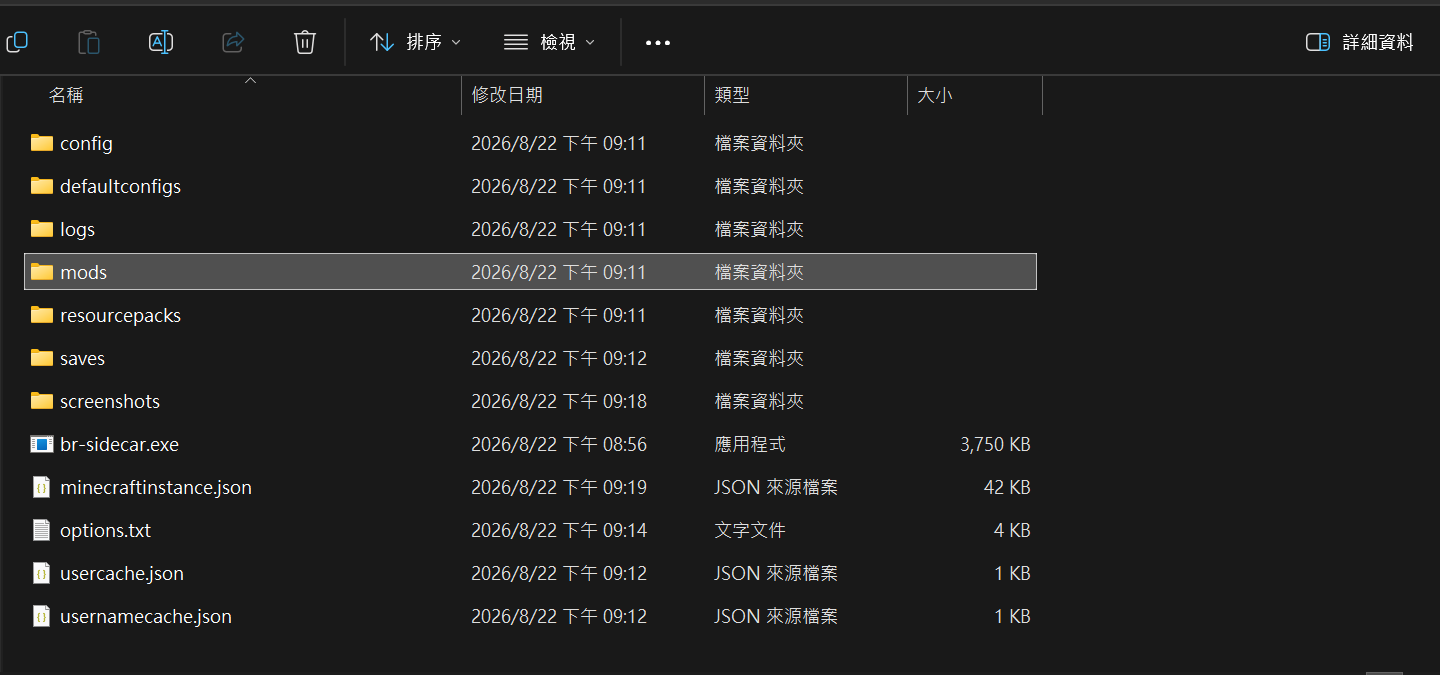

File Explorer showing br-sidecar.exe in the instance root beside the mods, saves and config folders — `br-sidecar.exe` in the instance root, the same folder as `mods/` rather than inside it.

Verify in game

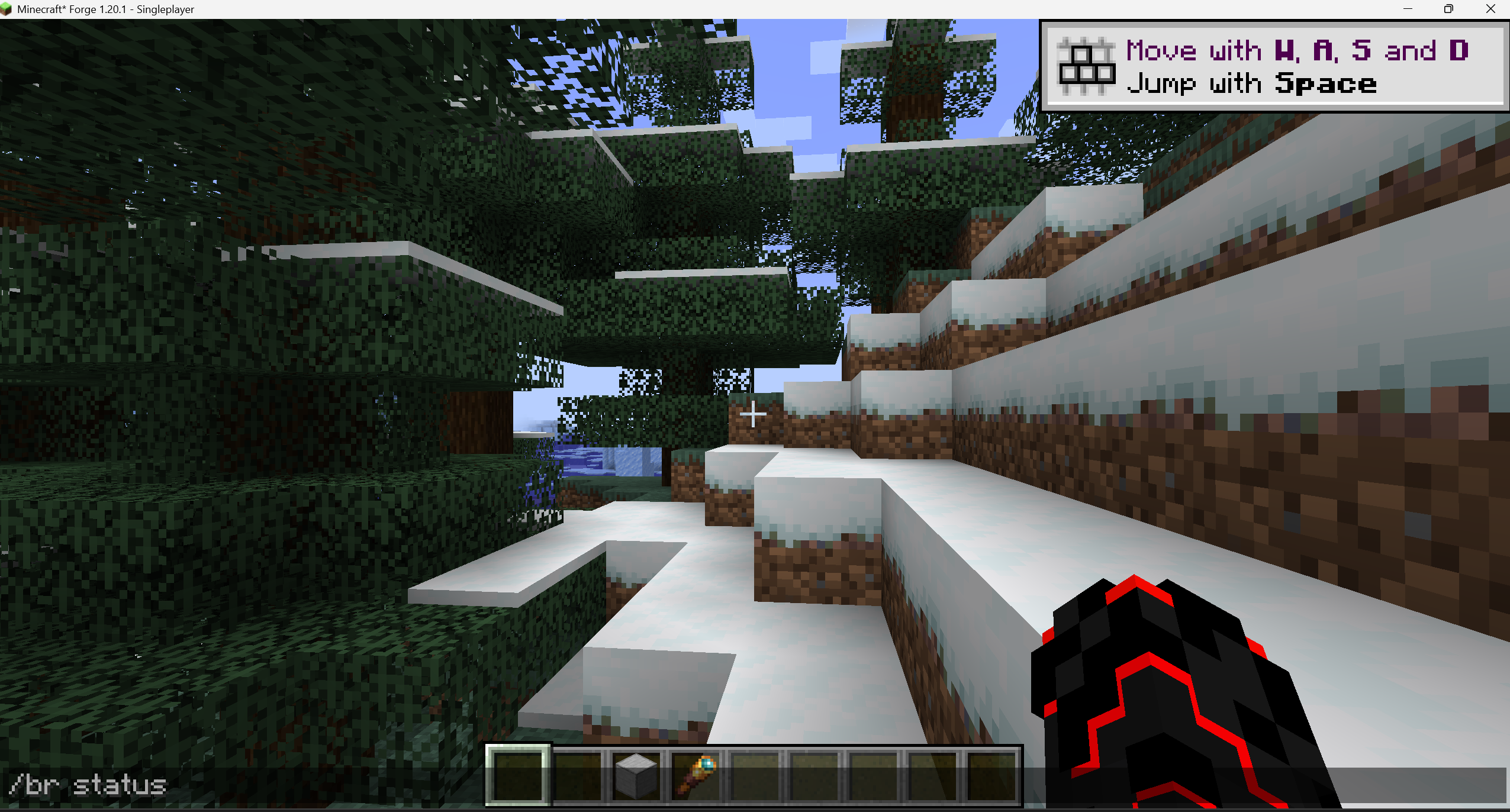

Launch the instance, load any world, press T and run:

/br status

You should get back something like this:

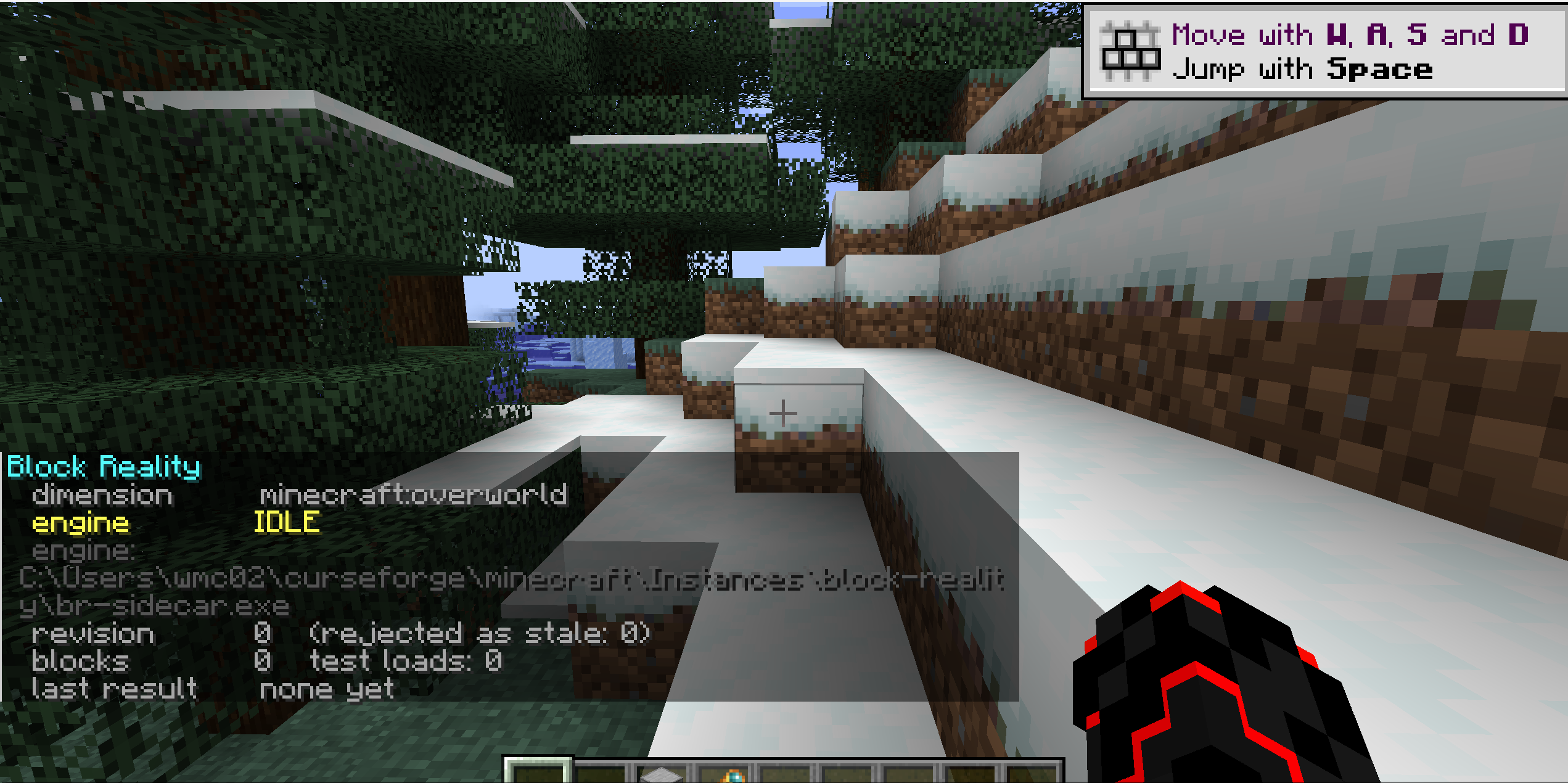

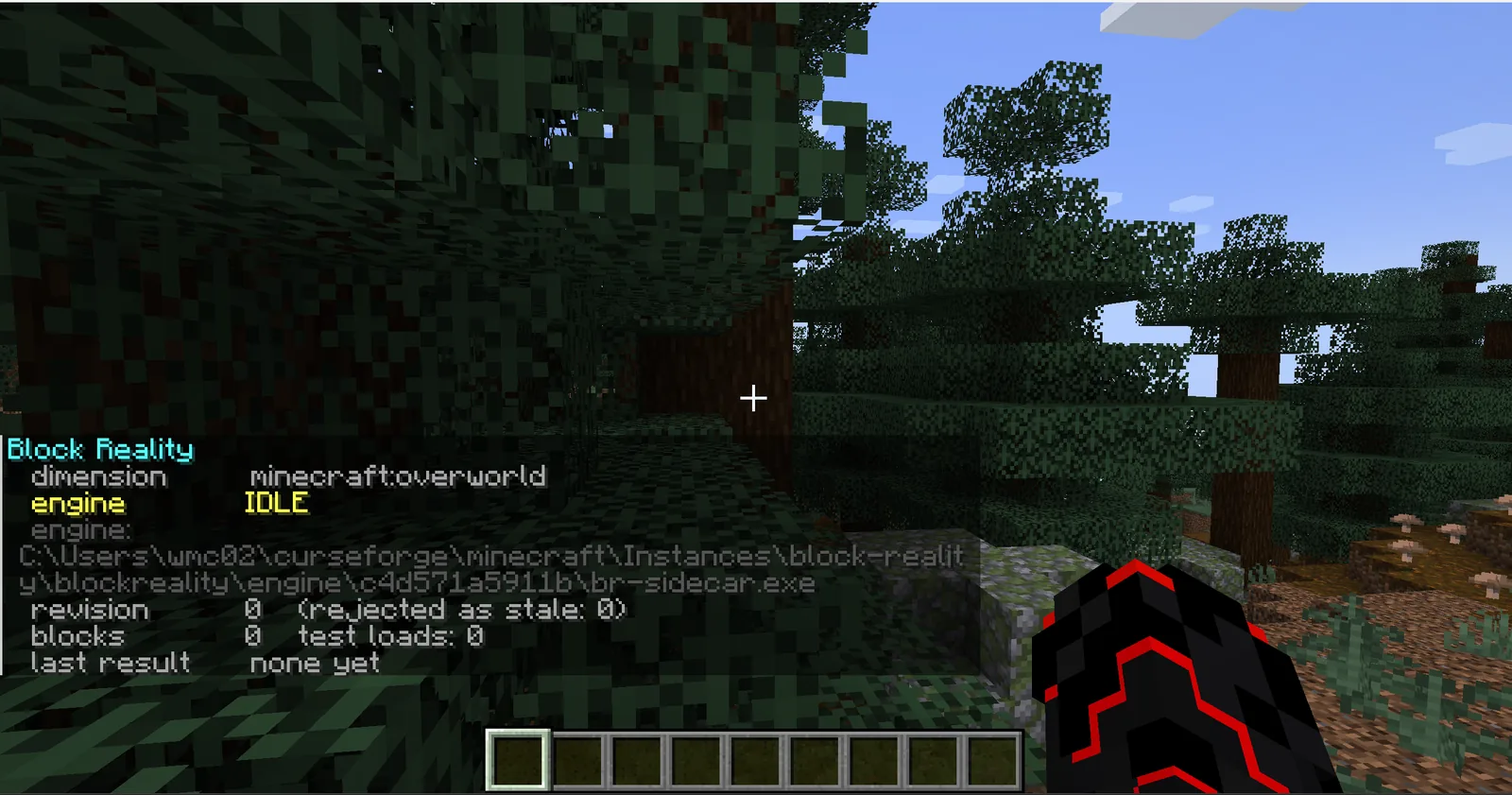

In-game readout listing dimension, engine IDLE, the resolved engine path, revision, blocks and last result — The engine was found. `IDLE` is what you want to see here.

engine IDLE — resolved and waiting. It is idle because there is nothing built yet.
engine: — the path it resolved to. If this line is missing, /br status lists every path it searched instead.
blocks 0 test loads: 0 — nothing structural in range yet.
last result none yet — no solve has run.

Now build something →

Troubleshooting

/br status shows no engine path

The mod looks for the engine in this order, and /br status prints every path it tried:

the config file
the -Dbr.sidecar JVM argument
the BR_SIDECAR environment variable
the game directory
PATH

Usually it is the fourth one: put br-sidecar.exe in the game directory, next to mods/ rather than inside it.

The installer found no Minecraft instance

It searched these:

%APPDATA%\.minecraft
%APPDATA%\PrismLauncher\instances\*
%APPDATA%\MultiMC\instances\*
%APPDATA%\ModrinthApp\profiles\*
%USERPROFILE%\curseforge\minecraft\Instances\*

If yours lives somewhere else, hand it the path directly:

install.bat "D:\games\my-instance\.minecraft"

It warns there is no br-sidecar next to the script

The zip did not fully extract, or install.bat got moved out on its own. It copies the files sitting beside it, so it needs the folder intact.

Not fatal. The mod gets installed anyway and plays with analysis off.

It says there is no Forge in this instance

You pointed it at a vanilla instance. Block Reality needs Minecraft 1.20.1 with Forge 47.x — files.minecraftforge.net.

Checking the download is intact

SHA256SUMS.txt has a hash for every file in the archive. To check them all at once:

sha256sum -c SHA256SUMS.txt

Or on Windows, one file at a time:

certutil -hashfile br-sidecar.exe SHA256

One difference to know about if you compare against the v0.1a tag: the install.bat served here is newer. It adds --help, fixes variable expansion in the instance picker, and tolerates a trailing backslash on a path you pass in. The hashes above are for what is served here.
