Block Reality

Real structural engineering, inside Minecraft

In vanilla Minecraft, gravity stops at sand and gravel. Block Reality brings real-world structural engineering into the game by running continuous finite element analysis (FEA) on every structure you construct.

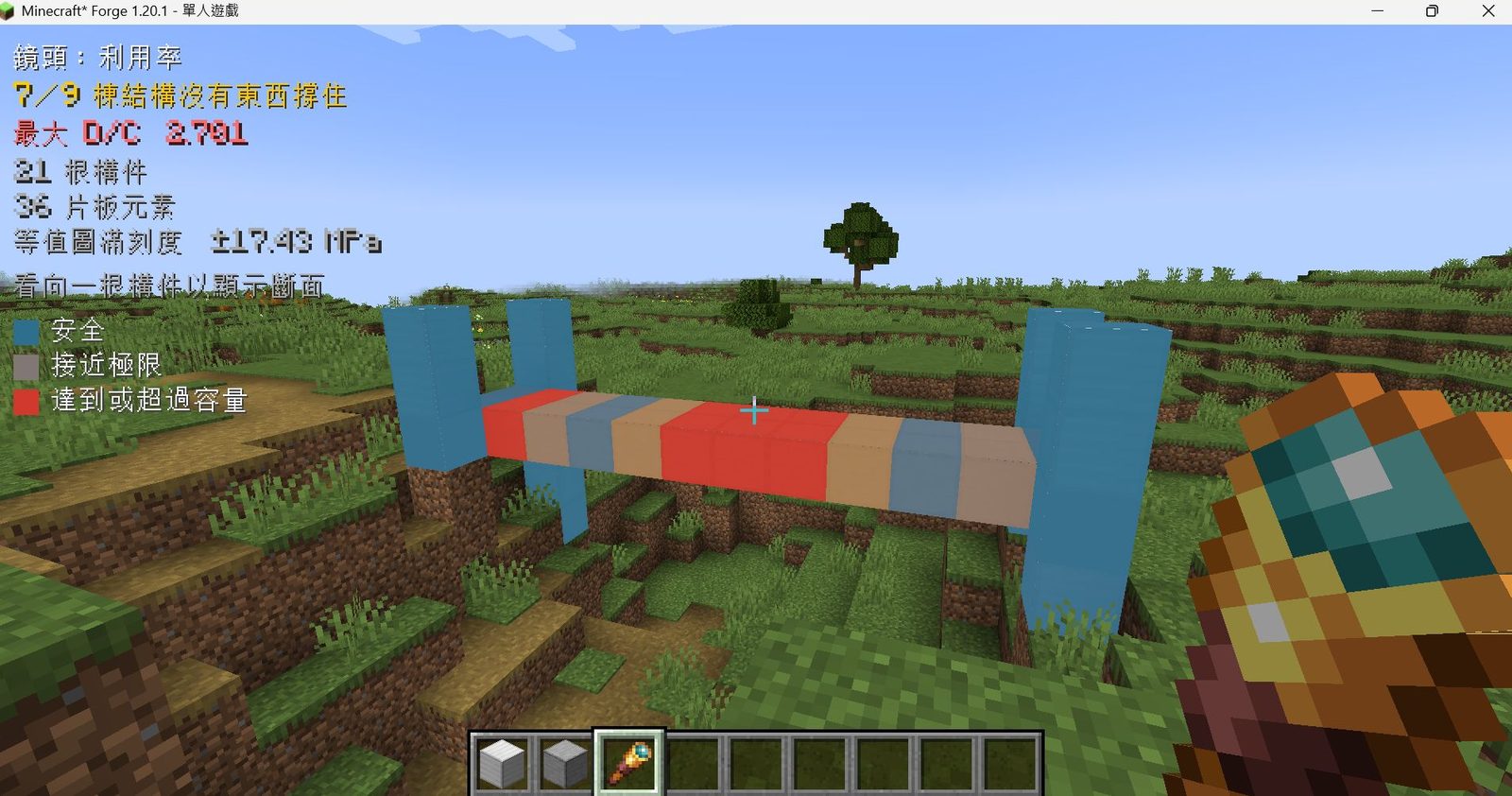

Every beam, column, slab, and wall carries self-weight and live loads. If a member's demand exceeds its capacity, it will deform, crack, and ultimately trigger progressive structural collapse.

How it works

Block Reality translates voxel grid geometry into rigorous structural engineering models behind the scenes:

• Voxel Scale: 1 Minecraft block is mapped directly as 1 meter.
• 6 DOF Nodes: Every analytical node maintains 6 degrees of freedom (3 translations, 3 rotations), faithfully transferring axial force, shear, bending moment, and torsion.
• Collinear Runs: Rather than treating each block in isolation, continuous blocks are merged into structural member runs (beams, columns, braces) for accurate stiffness matrices and fast solving.
• MITC4 Shell Elements: Walls and slabs are modeled with 4-node Mixed Interpolation of Tensorial Components (MITC4) shell formulations to prevent shear locking.
